Features
• AC circuit breaker
• Hydraulic-magnetic technology
• 100% rating capability, independent of ambient temperature
• One, two, three, four pole, 1+N and 3+N
• VC 8036 compliant (SANS 556-1)
• VDE, EAC and CCC approved, CE certified
• AS/NZS 3111 approved
• Ratings 0.1 A to 25 A
• Optional shunt trip (Approvals pending)
• Wide range of time delays & operating currents
• Precision tripping characteristics
• Ultra compact – 13 mm wide module
• Trip indication with mid-trip position
• Can be switched on immediately after tripping
• DIN mount, 45 mm front escutcheon (Grey)
• Dual (DIN & mini rail) mount, 57 mm front escutcheon (Black)
• Suitable to use for electrical isolation
• Shell designed for easier installation onto busbar
Applications
• AC branch circuit protection (DIN / EN 60947-2)
• Switch disconnector (DIN / EN 60947-3)
• Telecom / datacom equipment
• Lighting control
• UPS equipment
• Alternative energy equipment
• Mobile power generation equipment
• Railway signalling equipment
• Residential equipment
• Industrial equipment

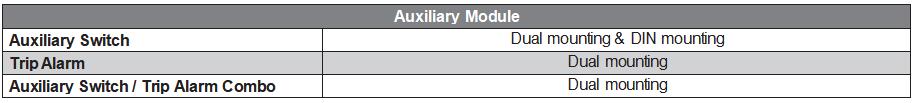

Auxiliary Switch, Trip Alarm & Combo:Features
• Factory fitted
• Attached to right hand side of the circuit breaker
• Compact 6.5 mm width
• Auxiliary switch + trip alarm (Dual mount only)
• Trip alarm (Dual mount only)
• UL 489 listed & IEC 60947-5-1 110 Vdc, 0.5 A; 240 Vac, 6A
Optional Accessories
• Handle lock - QFAP001
• Surface mounting clips - SAAX000
• Busbar - SABBM54
• 57 mm escutcheon blank (Dual mount only) - 235608
• 57 mm safety blank (Dual mount only) - SAEB000
Hydraulic-Magnetic Circuit Breakers 100% rated, unaffected by ambient temperature

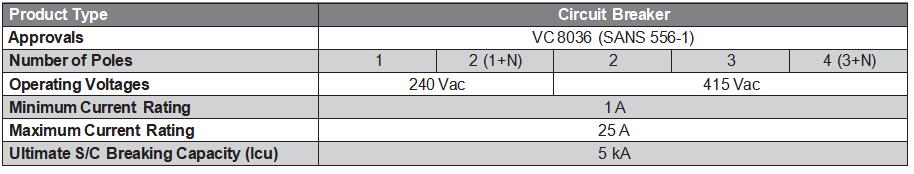

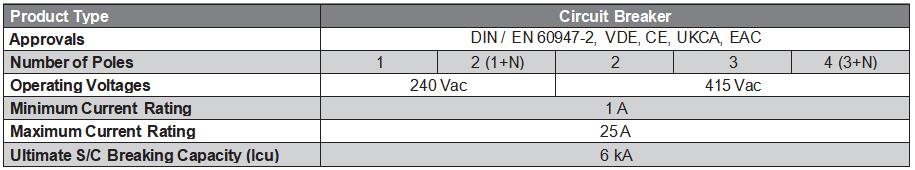

Technical Data

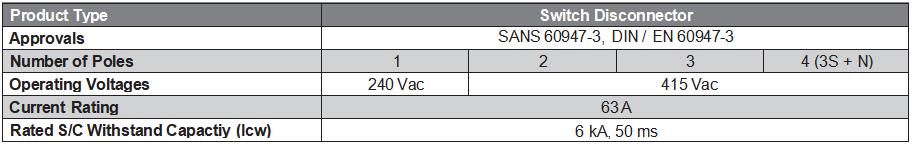

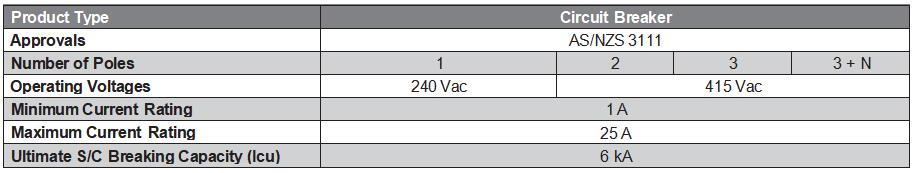

Technical Data

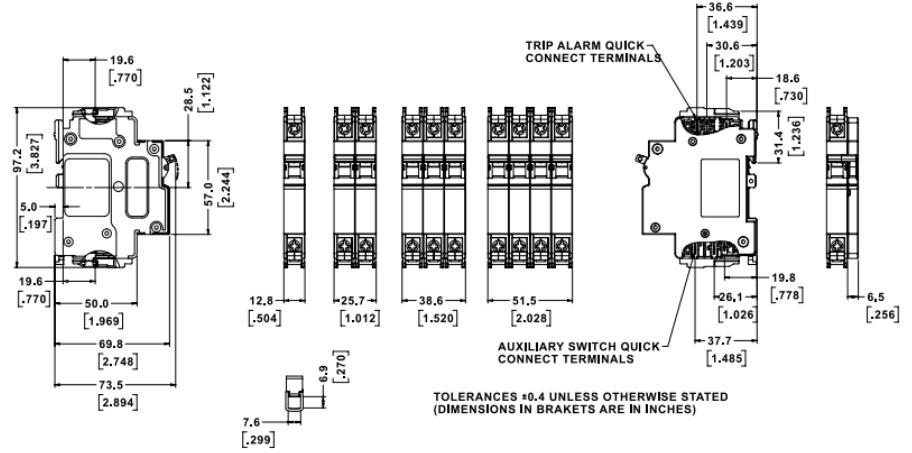

Outline Dimensions: Dual (DlN & mini rail) mount

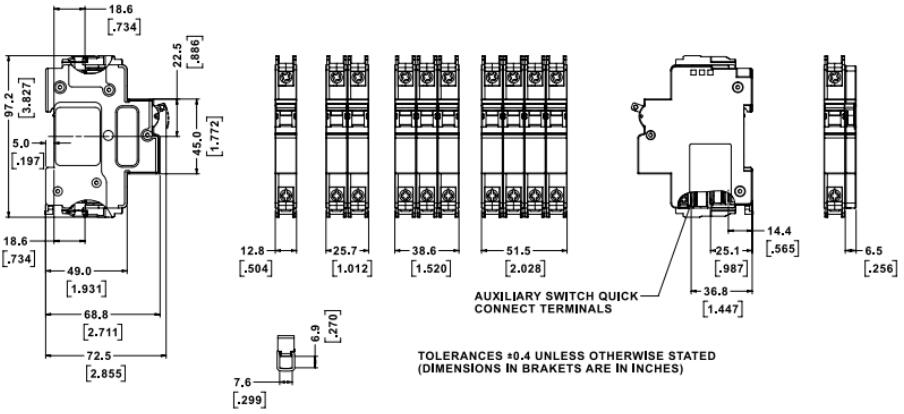

Outline Dimensions: DlN Mount
