Features
• AC and DC circuit breaker
• Ultra compact - 13 mm wide module
• Hydraulic-magnetic technology
• Can be switched on immediately after tripping
• YFD - DIN mount, 45 mm front escutcheon (Grey)
• YFM - DIN mount, 57 mm front escutcheon (Black)
• YFK - Dual (DIN & Mini) mount, 57 mm front escutcheon (Black)
• ON and OFF indication
• Suitable for electrical isolation
• 100% rated current capability, independent of ambient temperature
• One, two, three, four pole, 1P + N and 3P + N
• RoHS compliant
• Box type main terminals
Applications
• AC and DC branch circuit protection
• Telecom / datacom equipment
• Lighting control
• UPS equipment
• Alternative energy equipment
• Mobile power generation equipment
• Railway signalling equipment
• Residential equipment
• Industrial equipment
Auxiliary Switch and Trip Alarm Features
• Auxiliary switch
• AC and DC voltages
• IEC 60947-5-1 (6 A 240 Vac, 0.5 A 110 Vdc)
• GB14048.5 approved
• Factory fitted
• Attached to right hand side of circuit breaker
• Compact 6.5 mm width

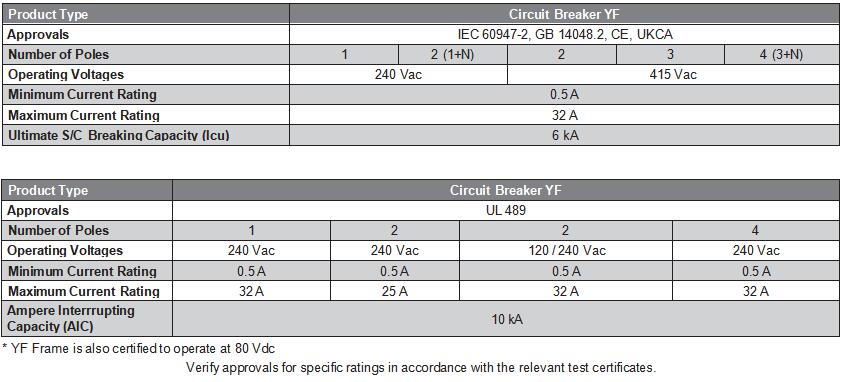

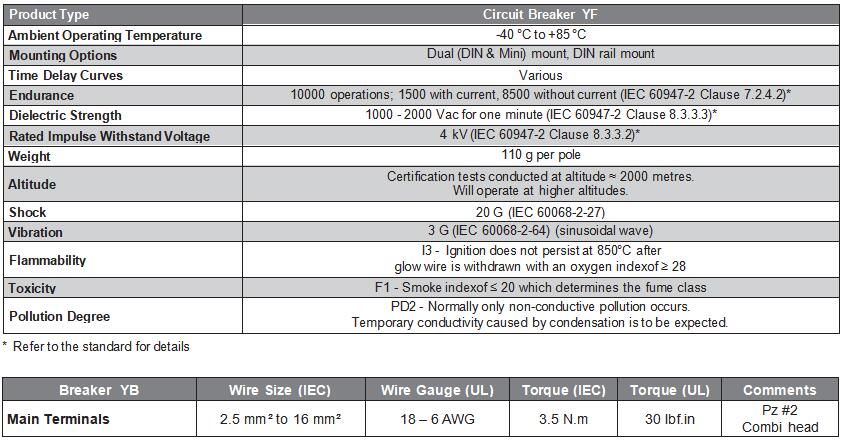

Technical Data

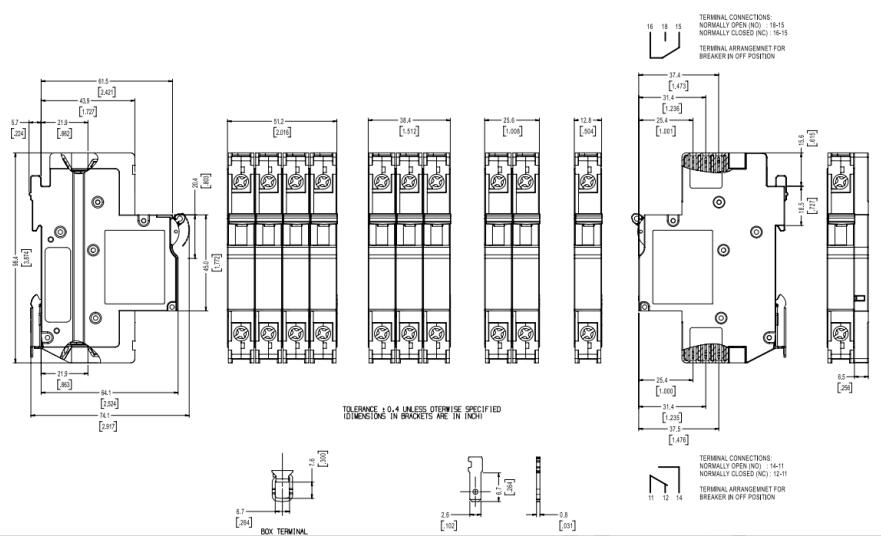

Outline Dimensions: DIN Mount 45 mm (YFD) Front Escutcheon (Grey)

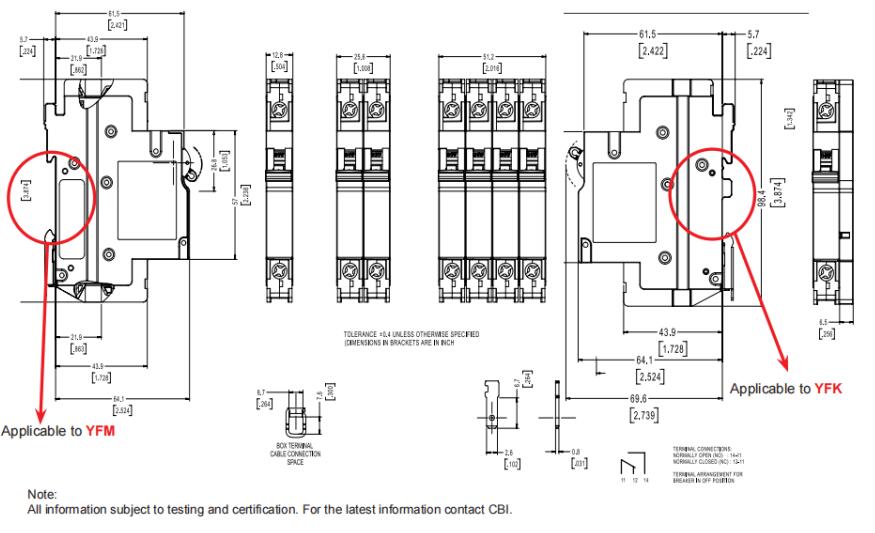

Outline Dimensions:
Dual Mount (DlN and Mini Rail) 57 mm (YFK) Front Escutcheon (Black)
DIN Mount 57 mm (YFM)Front Escutcheon (Black)
