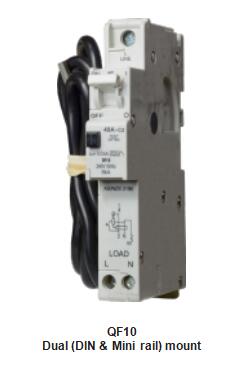

The QF10 is an Earth Leakage Device with overload protection (RCBO) with unswitched neutral in a single 18 mm wide unit.  It has an additional 1000 mm long neutral cable and fits on DIN and CBI mini rail.

Features
• Hydraulic-magnetic technology
• 100% rating capability, independent of ambient temperature
• AS/NZS 3190 compliant
• Ratings 6 A to 32 A
• Earth Leakage sensitivity 30 mA, Type A
• Single pole with unswitched neutral
• Supplied with a neutral cable
• Compact 18 mm width
• Precision tripping characteristics
• Trip indication with mid-trip position
• Can be switched on immediately after tripping
• Design permits easier installation onto busbar (single line terminal with neutral cable)
• 45 mm front escutcheon

Applications
• Residential and commercial applications requiring high   sensitivity earth leakage protection from electrical shock and fire hazards
• Telecom / datacom equipment
• Lighting control
• Alternative energy equipment
• Mobile power generation equipment
• Railway signalling and infrastructure

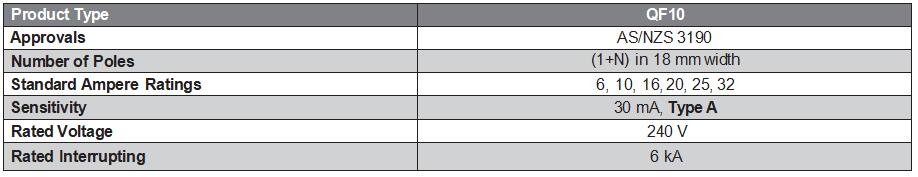

Approvals

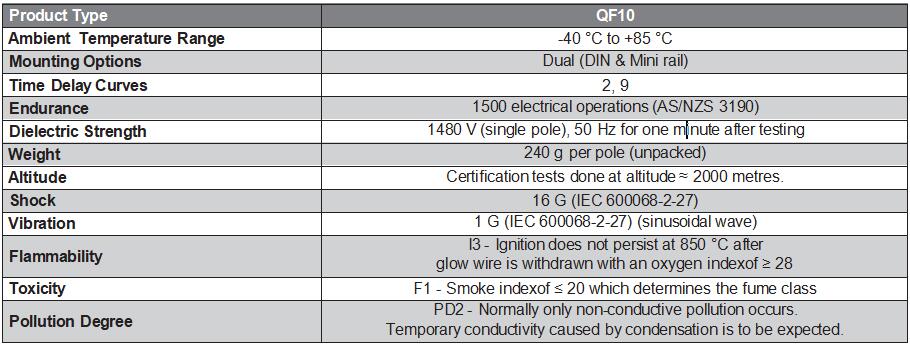

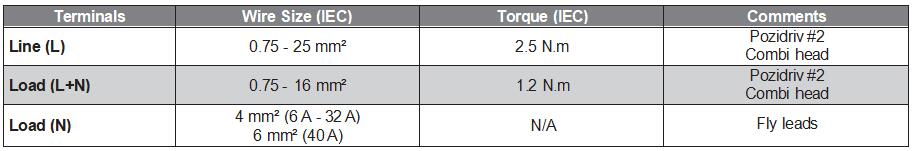

Technical Data

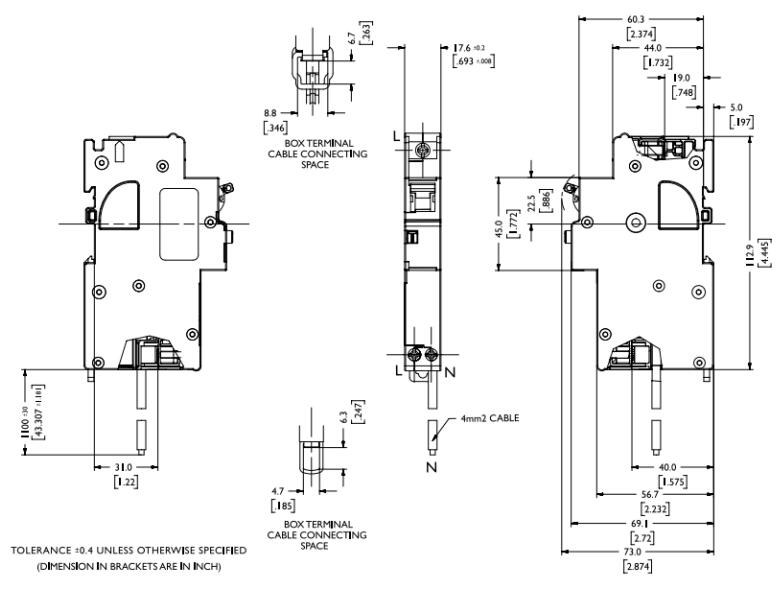

Outline Dimensions: Dual (DlN & mini rail) mount
