Product Category
• UNPOLARISED PRODUCT
150 Vdc (1P & 2P), 300 Vdc (2P in series) 300 Vdc 4 (2P in series + 2P in series) and 600 Vdc (4P in series)
(Reverse feedable)
• Verify approvals
Features
• High energy DC circuit breaker
• Ultra compact - 13 mm wide module
• Hydraulic-magnetic technology
• Can be switched on immediately after tripping
• YBD - DIN mount, 45 mm front escutcheon (Grey)
• YBM - DIN mount, 57 mm front escutcheon (Black)
• YBK - Dual (Din & Mini) mount, 57 mm front escutcheon (Black)
• ON and OFF indication
• Suitable for electrical isolation
• 100% rating capability, independent of ambient temperature
• RoHS compliant
• Box type main terminals
Applications
• Solar equipment
• DC circuit protection
• Telecom / datacom equipment
• UPS equipment
• Alternative energy equipment
• Battery protection
Auxiliary Switch and Trip Alarm Features
• Auxiliary switch
• AC and DC voltages
• IEC 60947-5-1 (6 A 250 Vac, 0.5 A 110 Vdc)
• GB 14048.5 approved
• Factory fitted
• Attached to right hand side of circuit breaker
• Compact 6.5 mm width

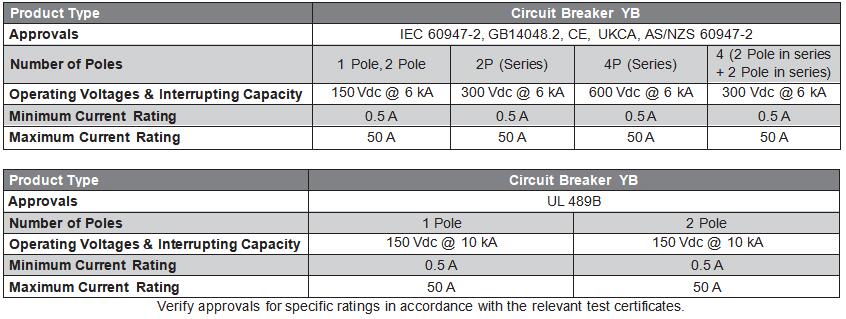

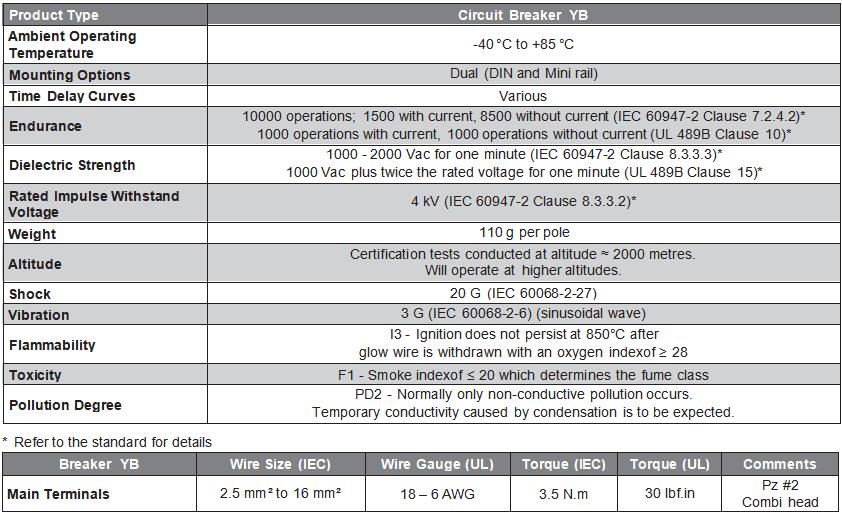

Technical Data: Approvals

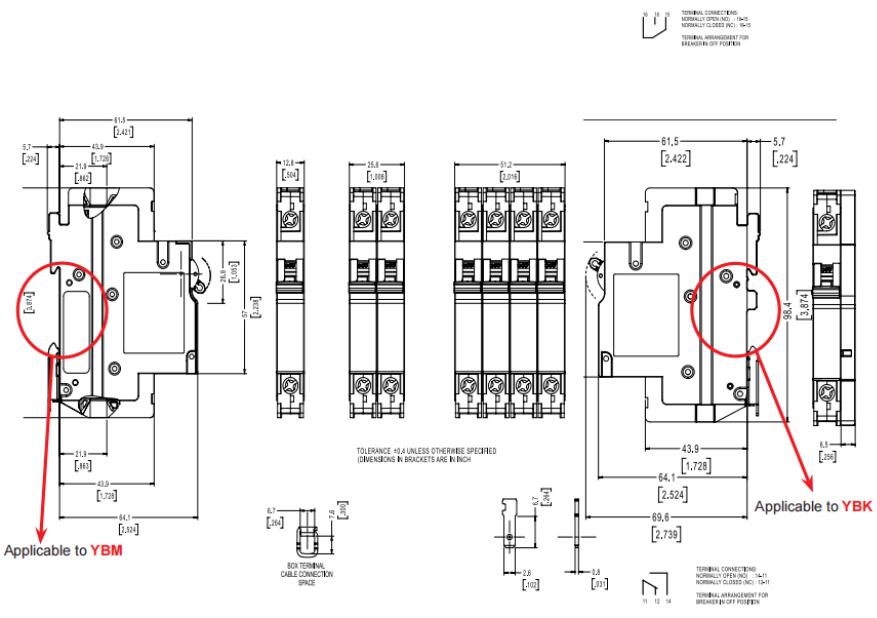

Outline Dimensions:
Dual Mount (DIN and Mini Rail) 57 mm (YBK) Front Escutcheon (Black)DIN Mount 57 mm(YBM) Front Escutcheon (Black)
