4 Pole DIN mount

名称:4 Pole DIN mount

  • 产品详情

Product Category
• POLARISED PRODUCT

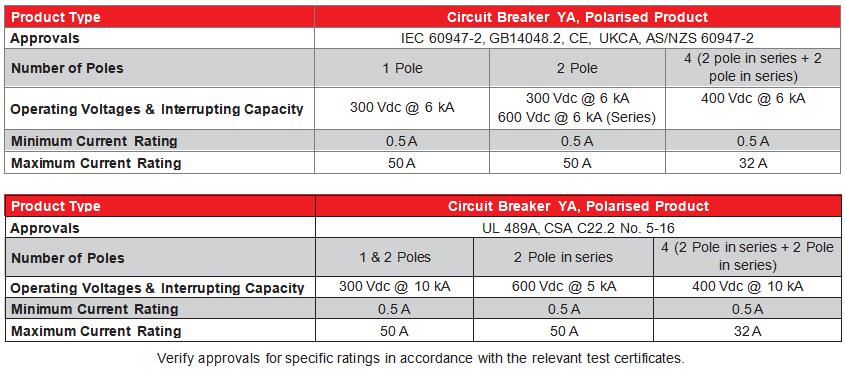

300 Vdc, 1 Pole & 2 Pole; (300 Vdc per Pole)
400 Vdc, 4 Pole (2 Pole in series + 2 Pole in series) 600 Vdc, (2 Pole in series)
• Verify approvals

Features
• High energy DC circuit breaker
• Ultra compact - 13 mm wide module
• Hydraulic-magnetic technology
• Can be switched on immediately after tripping
• YAD - DIN mount, 45 mm front escutcheon (Grey)
• YAM - DIN mount, 57 mm front escutcheon (Black)
• YAK - Dual (Din & Mini) mount, 57 mm front escutcheon (Black)
• ON and OFF indication
• Suitable for electrical isolation
• 100% rating capability, independent of ambient temperature
• RoHS compliant
• Box type main terminals

Applications
• Telecom / datacom
• DC circuit protection
• UPS equipment
• Alternative energy equipment
• Battery protection

Auxiliary Switch and Trip Alarm Features
• Auxiliary switch
• AC and DC voltages
• IEC 60947-5-1 (6 A 250 Vac, 0.5 A 110 Vdc)
• GB 14048.5 approved
• Factory fitted
• Attached to right hand side of circuit breaker
• Compact 6.5 mm width



Outline Dimensions:

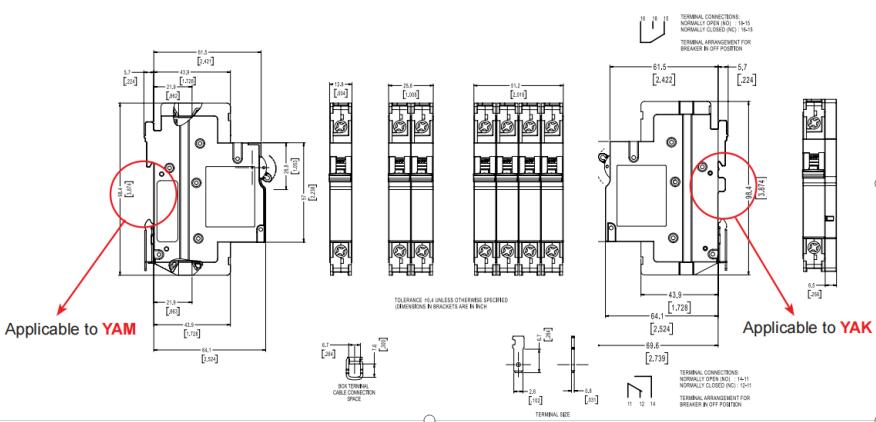

Dual Mount (DlN and Mini Rail) 57 mm (YAK) Front Escutcheon (Black)

DIN Mount 57 mm(YAM)Front Escutcheon(Black)

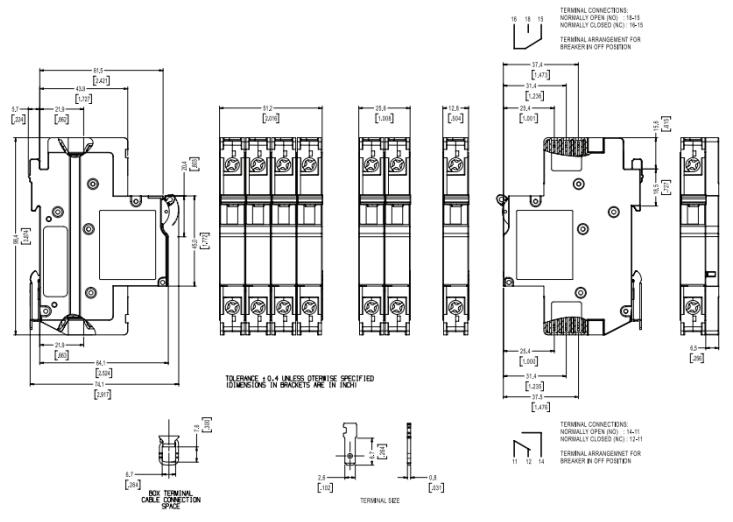

Outline Dimensions: DIN Mount 45 mm (YAD) Front Escutcheon (Grey)
