The T-Frame is a compact, low profile circuit breaker. It is available in single and double pole configurations and itslow profile design makes it ideal for power distribution applications. The T-Frame has the rocker handle configuration and is available in both AC and DC.
Features
• AC and DC circuit breaker
• Hydraulic-magnetic technology
• 100% rating capability independent of ambient temperature
• Up to two poles
• VDE approved, CE certified
• UL Listed
• Ratings 0.1 A to 30 A (Specific certifications)
• Precision tripping characteristics
• Wide range of time delays
• Two colour handle indication (Two tone flush rocker)
Applications
• AC and DC branch circuit installations
• Power conditioning
• Telecom power distribution
• Alternative energy equipment
• UPS equipment
• Lighting control
• Mobile power generation equipment
Approvals
The T-Frame circuit breaker carries various approvals such as DIN/EN 60947-2, GB14048.2, VDE, cURus and is CE certified. It is also recognised and listed to UL489.
Technical Data

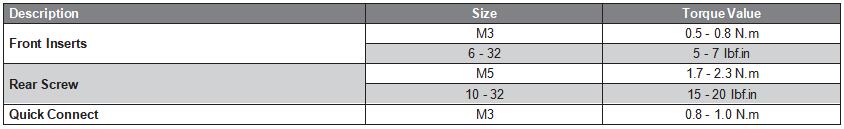

Torque Table

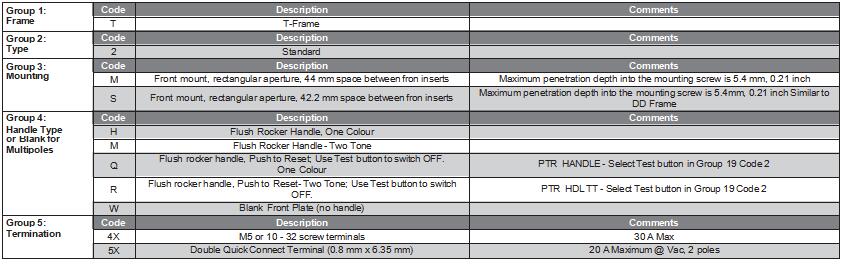

Ordering Information

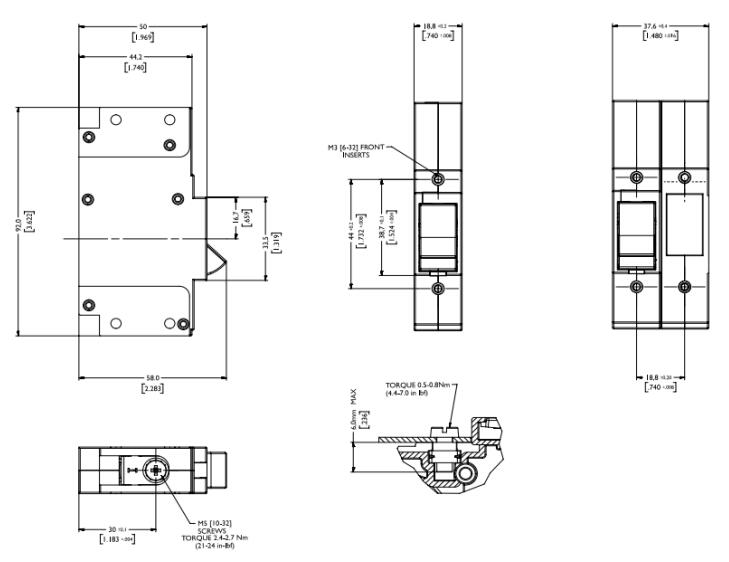

T-Frame: Outline Dimensions
T Frame 44 mm space between front insets
