Features
• AC circuit breaker
• Hydraulic-magnetic technology
• 100% rating capability, independent of ambient temperature • One,two and three pole (UL). One, two, three pole and 1+N,
3+N (VDE).
• VDE, EAC and CCC approved, CE certified
• UL 489 Listed
• Ratings 0.5 A to 25 A
• Optional shunt trip (Approvals pending)
• Wide range of time delays and operating currents • Precision tripping characteristics
• Ultra compact – 13 mm wide module
• Trip indication with mid-trip handle
• Can be switched on immediately after tripping
• DIN mount, 45 mm front escutcheon (Grey)
• Dual (DIN & mini rail) mount, 57 mm front escutcheon (Black)
• Ring terminalready (Terminal screw is removable)
Auxiliary Switch, Trip Alarm & Combo:Features
• Factory fitted
• Attached to right hand side of circuit breaker
• Compact 6.5 mm width
• Auxiliary switch (DIN and Dual mount)
• Auxiliary switch + trip alarm (Dual mount only)
• Trip alarm (Dual mount only)
• UL 489 listed & IEC 60947-5-1 110 Vdc, 0.5 A; 240 Vac, 6 A
Applications
• AC branch circuit protection
• Telecom / datacom equipment
• Lighting control
• UPS equipment
• Energy equipment
• Mobile power generation equipment
• Power conditioning equipment
Optional Accessories
• Handle lock - QFAP001
• Surface mounting clips - SAAX000
• 57 mm escutcheon blank (Dual mount only) - 235608
• 57 mm safety blank (Dual mount only) - SAEB000

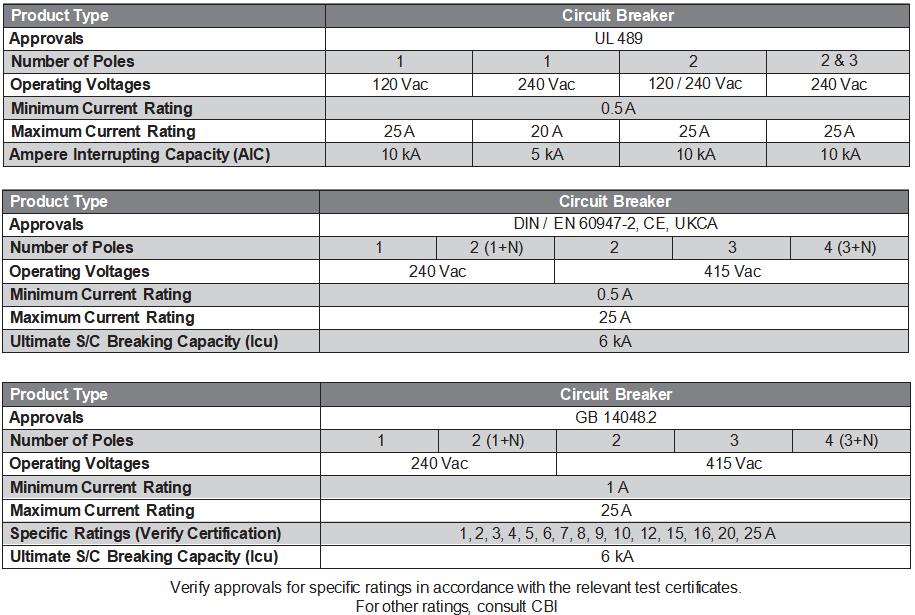

Technical Data

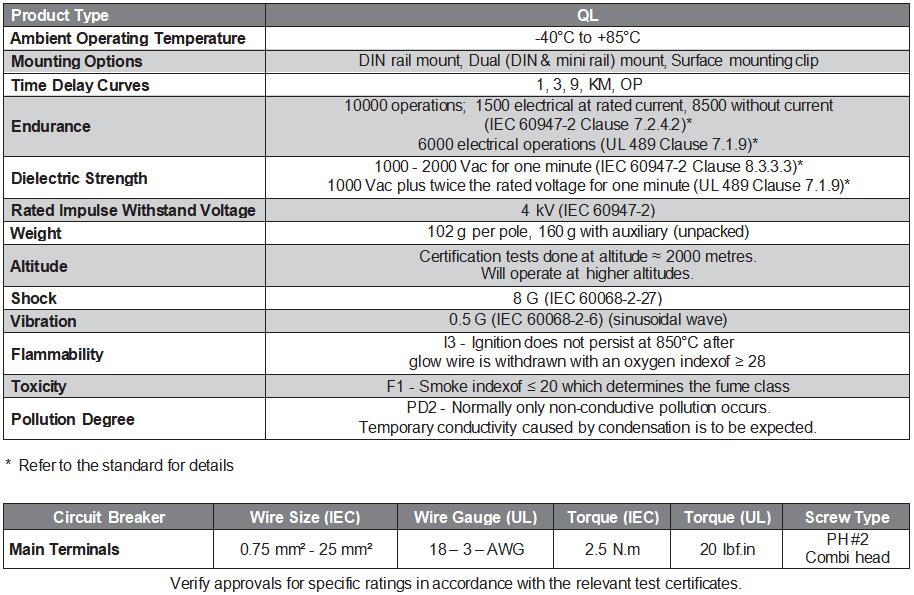

Technical Data

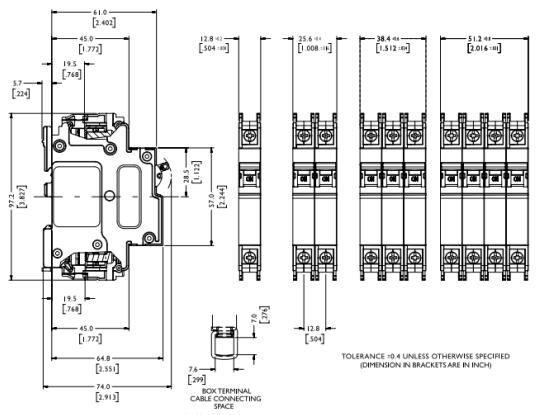

Outline Dimensions: Dual (DlN & mini rail) mount

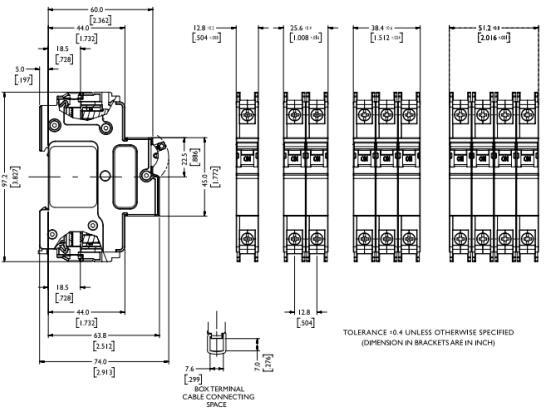

Outline Dimensions: DlN mount
