Features
• AC and DC circuit breaker
• Hydraulic-magnetic technology
• 100% rating capability independent of ambient temperature
• Up to six poles
• VDE, EAC and CCC approved, CE certified
• UL compliant (Listed / recognised)
• Ratings 0.1 A to 100 Aac and 400 Adc (Specific certifications)
• Precision tripping characteristics
• Wide range of circuits, mountings, terminations and time delays
• Two colour handle indication (Two tone flush rocker)
• Optional mid-trip indication (Standard handle)
• Optional auxiliary switch and trip alarm
• Optional remote switching (see RAU data sheet)
Applications
• AC and DC branch circuit installations
• Power conditioning
• Telecom DC and Datacom power distribution
• Alternative energy equipment
• UPS equipment
• Lighting control
• Mobile power generation equipment
• Battery protection
• Railway signaling and infrastructure protection
Approvals
The DD-Frame circuit breaker is CE & CCC compliant and caies various approvals such as VDE, cURus, EAC andCcc. it is also recognised to UL1077 and uL508, and listed to UL489 and UL489A. Compliant with AS /NZS 60947-2.

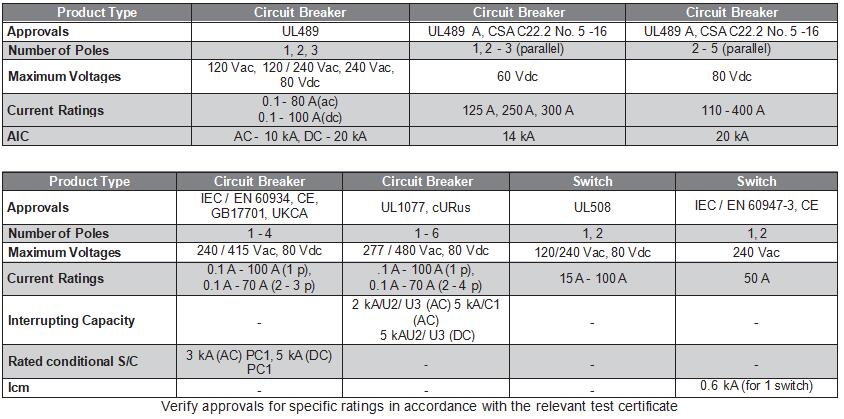

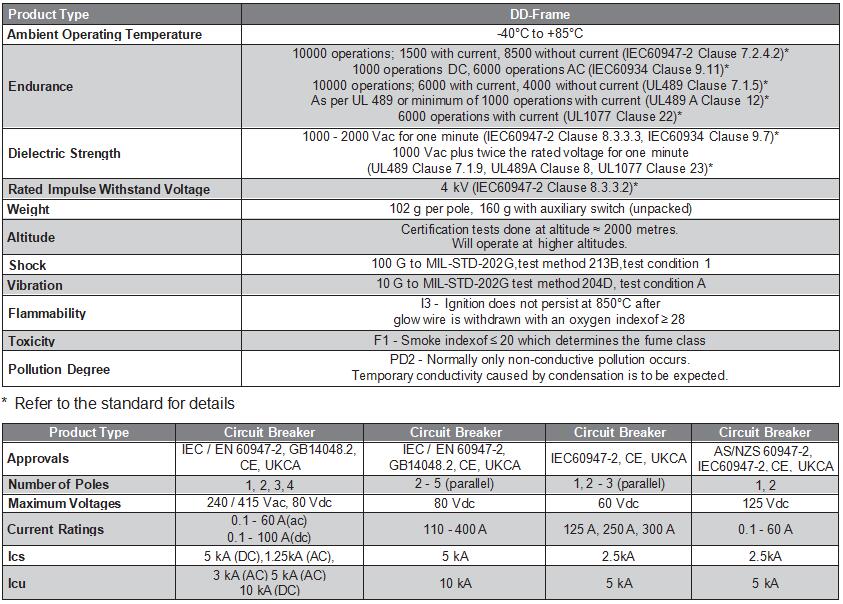

Technical Data
Technical Data

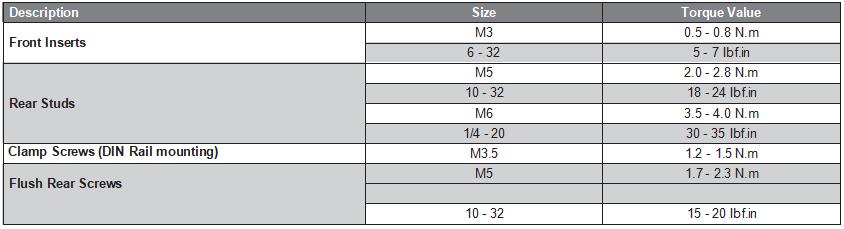

Torque Table

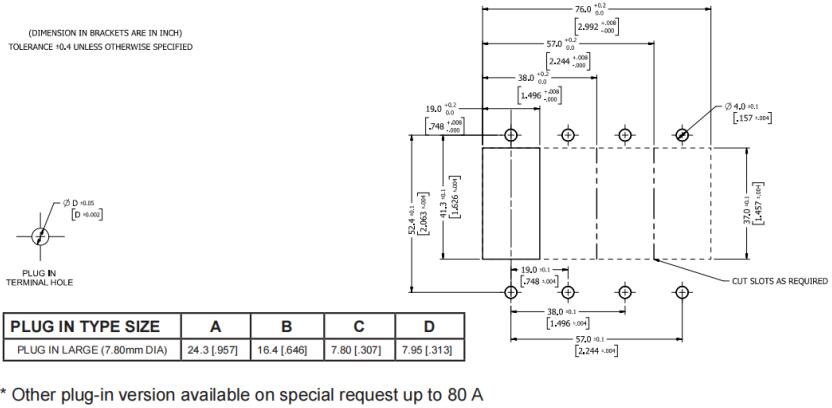

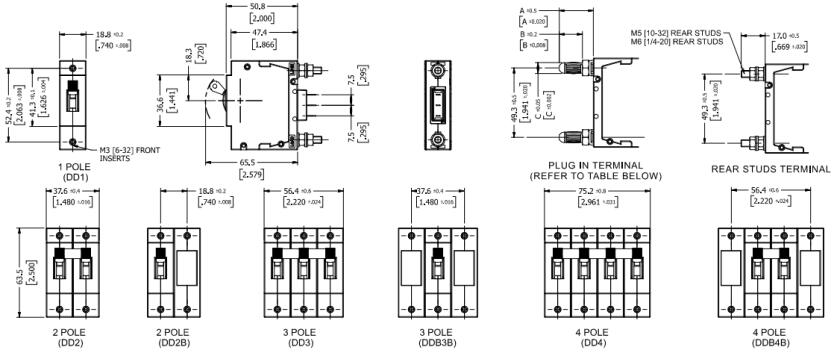

Outline Dimensions: Panel Cutout Standard Handle
