C Frame MKV 2 pole rocker

名称:C Frame MKV 2 pole rocker

  • 产品详情

Features
• AC circuit breaker
• Hydraulic-magnetic technology
• 100% rating capability independent of ambient temperature
• Up to two poles
• EAC pending, CE certified
• Ratings 1 A to 20 A@ 10 kA AIC
• Precision tripping characteristics

Applications
• Telecommunications, datacoms
• UPS equipment
• Mobile power generation equipment
• Alternative energy equipment
• Lighting control

Approvals

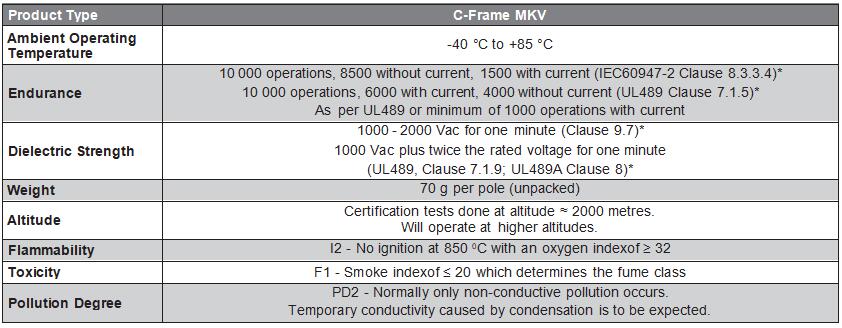

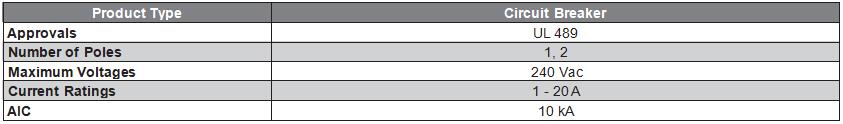

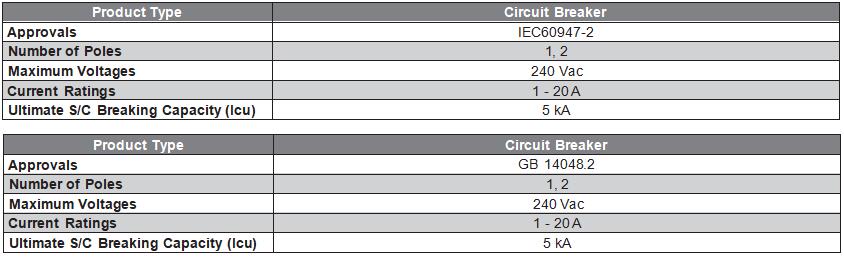

Technical Data

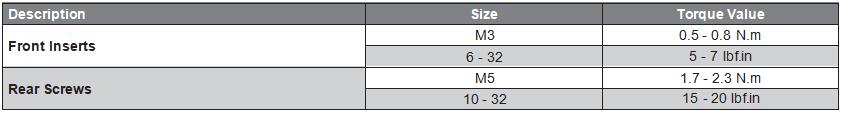

Torque Table

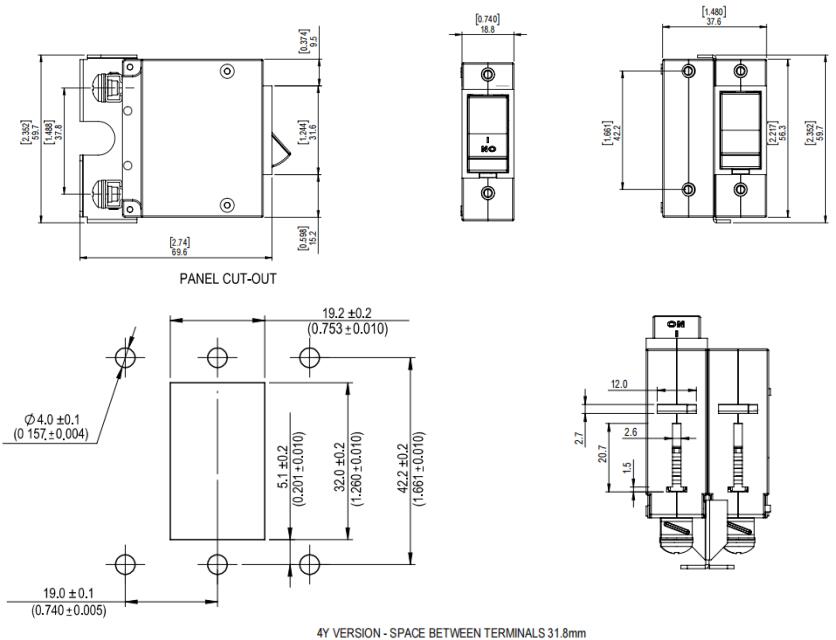

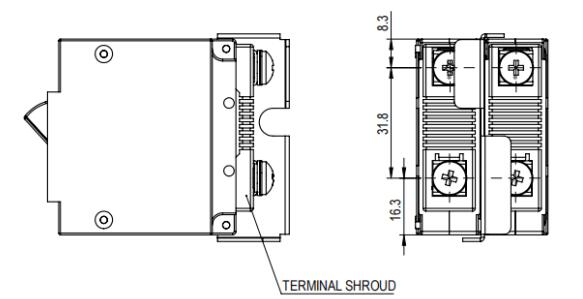

Outline Dimensions:C-Frame MKV
