B Frame -Black rocker

名称:B Frame -Black rocker

  • 产品详情

Features
• AC and DC circuit breaker
• Hydraulic-magnetic technology
• 100% rating capability independent of ambient temperature
• Up to two poles
• VDE, EAC and CCC approved, CE certified
• UL compliant (recognised / listed)
• Ratings 0.1 A to 30 A (Specific certifications)
• Precision tripping characteristics
• Wide range of circuits, mountings, terminations and time delays
• Optional auxiliary switch
• Optional illuminated rocker handle
• 300 Vdc switch (2 pole)

Applications
• Lighting equipment
• Office equipment
• Power supplies
• Telecom power distribution
• Small generators and motors
• Railway signalling systems
• Entertainment systems
• Vending machines
• Power distribution units (PDU)
• Suitable for motor starting

• Solar and renewable


Approvals
The B-Frame circuit breaker carries various approvals such as VDE, cURus, EAC, CCC and is CE certified.  It  is also recognised to UL 1077, UL 508 and listed to UL 489A.

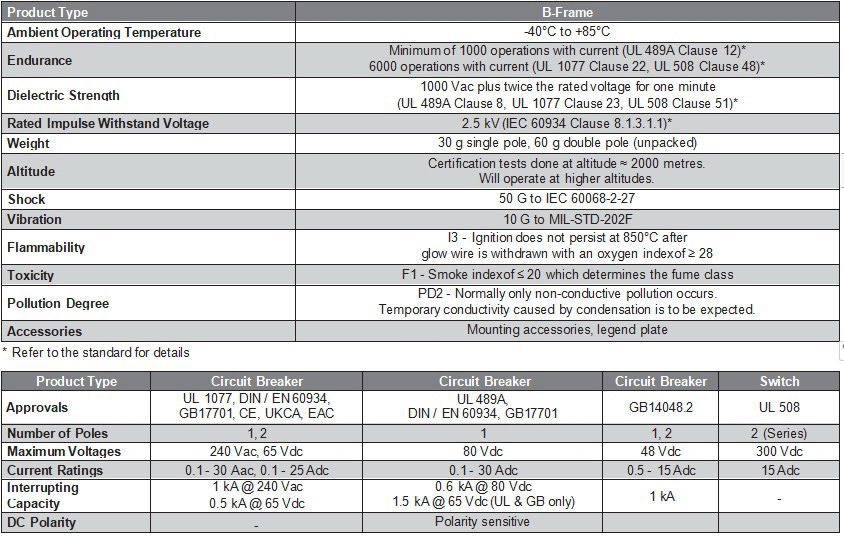

Technical Data

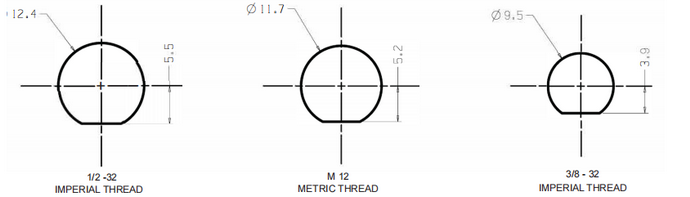

Panel cut-out dimensions for standard B Frame
