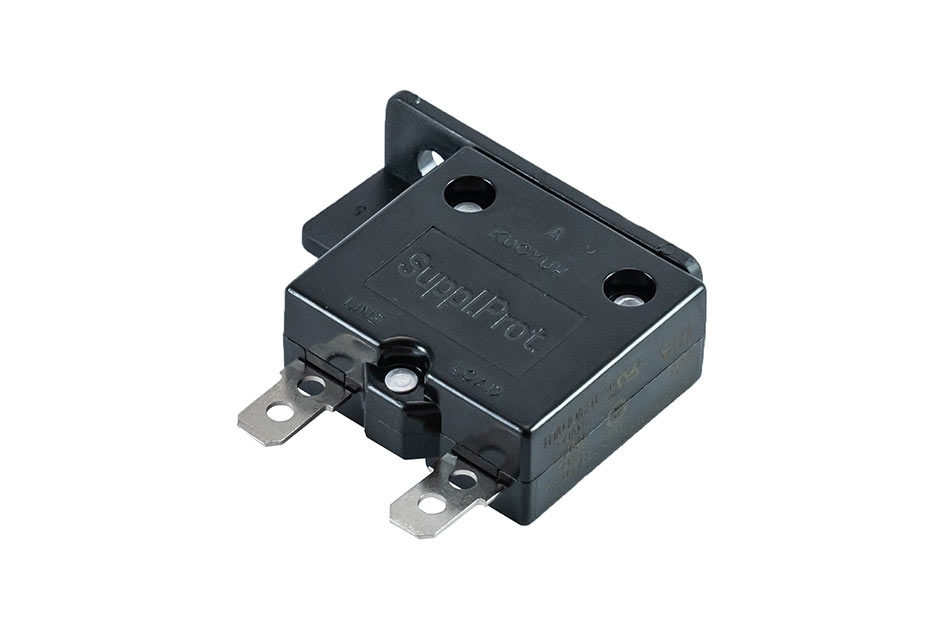

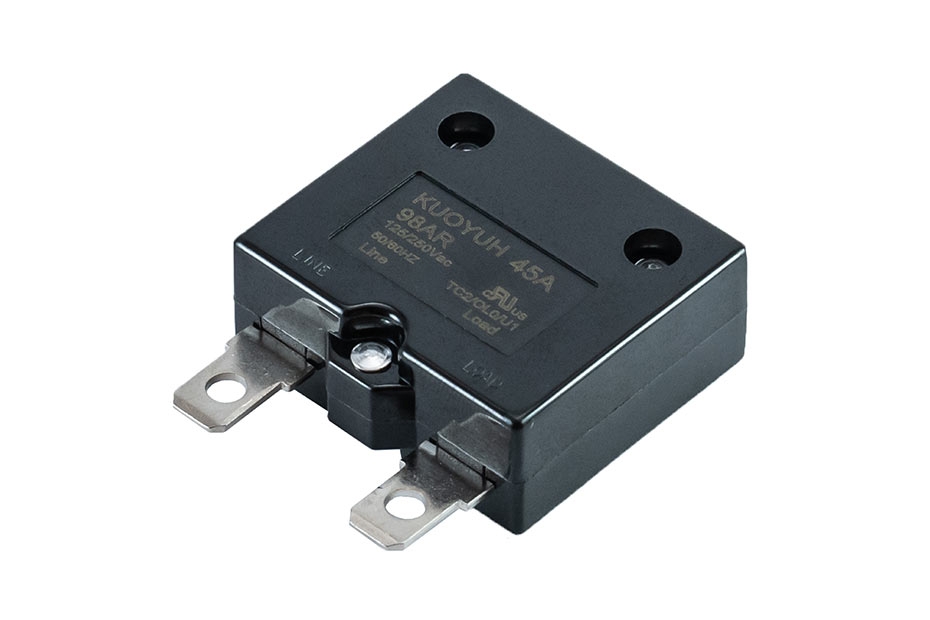

98-Series Ignition Protected Circuit Breaker

Product name:98-Series Ignition Protected Circuit Breaker

The 98 series manual reset overload protector is a unipolar, one-key reset thermal circuit protector, which is larger than the 88 series product and can carry a larger current. It is a reliable circuit protection device. This series has a long history of development, the product is very mature and the durability is good. KUOYUH uses the body of bakelite, which can withstand the 850 degree glow wire experiment, and provides various accessories such as nuts and waterproof caps for customer. The 98 series current is 3-50 amps, suitable for European-style plug, uninterruptible power system, inverter, water pump, electric scooter, machine tool, generator, battery protection, motor protection, etc. Passed UL/CUL (North America), CSA (Canada), CCC (China), TUV (Europe) and SAA (Australia), etc. Passed UL1500 ignition protection certification and RoHS environmental protection certification, etc.
  • Detail





Key Features

1.Following UL1077 Standard, EN60934 Standard, IEC60934 Standard.
2.(Cadmium free contacts) Comply with European environmental protection requirements.
3.Use bakelite body, high temperature resistance, better safety.
4.Trip Free Cycling.


Ratings
1.Current rating range : 3A--50A
2.Input voltage rating : 125/250VAC; 32/50VDC
3.Interrupting Capacity : 125/250VAC x 1,000A (UL 1077)

Testing Performed
1.Current test : 200% current full-inspect test
2.Dielectric strength test : 1500VAC/min
3.Glow wire test : 850 degree


Safety Certification
●Electrical appliances certification : UL, CSA, CB, VDE, TUV, CCC, SAA
●Environmental standards : RoHS, REACH
