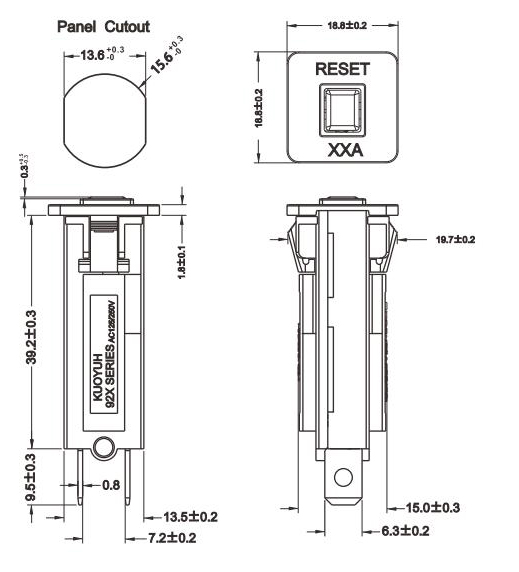

产品名称: 92X
产品型号: 0.5A-20A
额定电流(rating):0.5A-20A
输入电压(Input Power):125VAC/250VAC/32VDC 50-60Hz
耐电压强度(Withstand voltage strength):1500VAC/1min
漏电电流≤0.5mA(1500VAC/min,the leaked current is less than≤0.5mA)
绝缘电阻(Insulation Resistance):500VDC1Min≥100MΩ
额定短路能力(Rated short-circuit capacity):125VAC/1000A，250VAC/1000A
额定通断能力(Rated breaking capacity):6倍额定电流(6 times rated current)
复位方式(reset):手动复位(Manual Push Reset)
复位时间(Reset Time):60s"内回复(Within 60s")
脱扣特性(Tripping characteristics)
测试环境温度(The test environment temperature):25℃±3℃
额定电流200%(200% of Ratcd Currcnt):5-43s" 内脱扣(5-43s" Seconds Trip)
额定电流150%(150% of Rated Current):一个小时内脱扣(Trip within 1 Hour)
额定电流100%(100% of Rated Current):保持不脱扣(Hold,No Trip)
